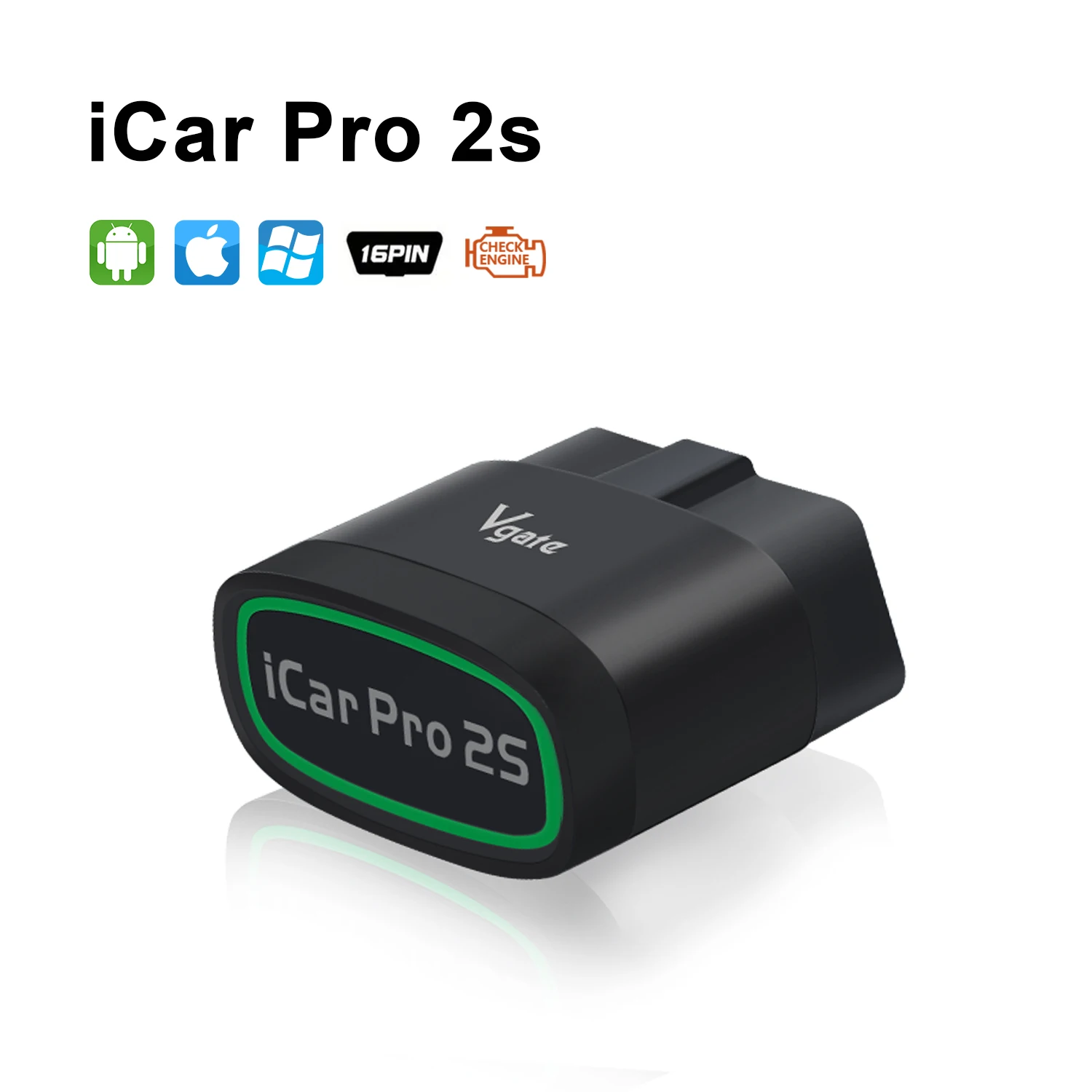

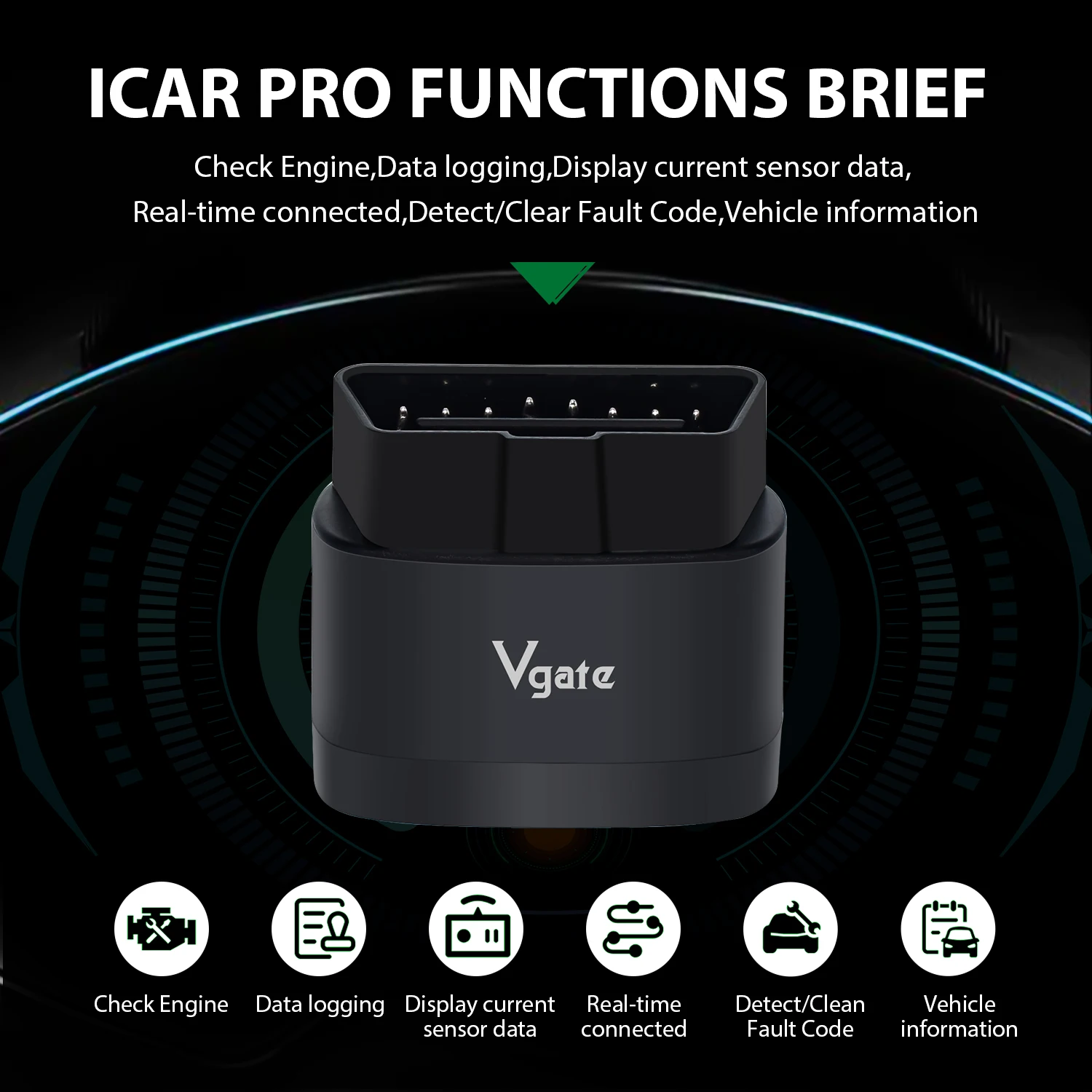

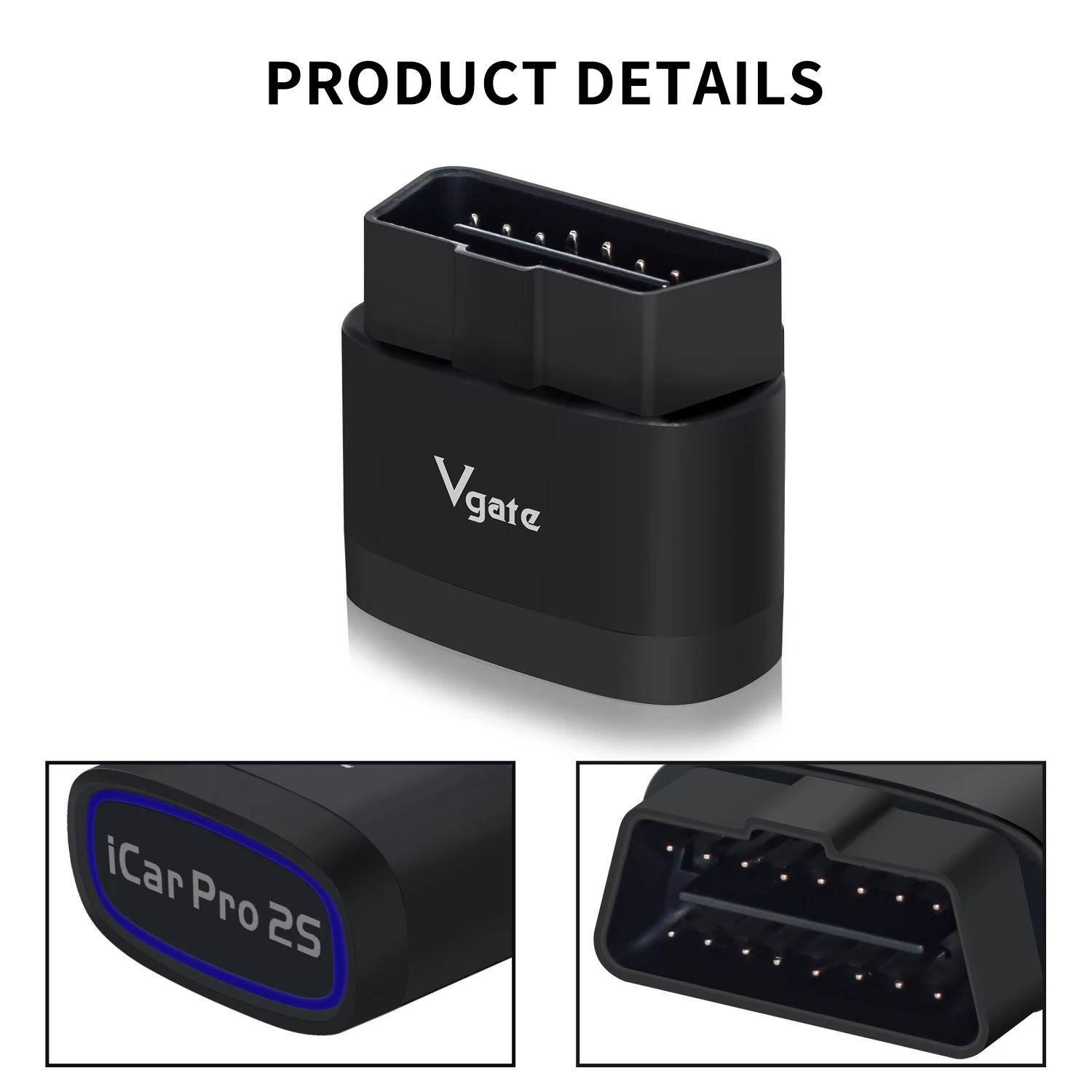

Product Introduction

   Vgate iCar Pro 2S is a Bluetooth product , Transform youriPhone, Android device, or Windows PC into a professional-grade diagnostic scan tool. The  iCar Pro 2S  Bluetooth OBD-II adapter can access all legal OBD-II protocols. Connect to the vehicle diagnostic seat through a plug, install client software and diagnostic software to diagnose car faults. For example, reading non-specific and manufacturer-specific fault codes, reading real-time ECU sensor data (engine speed, fuel system status, fuel pressure, oxygen sensor voltage and many other readable parameters on the vehicle) and more!

KEY FEATURES:

Over-voltage, over-temperature, over-current protection.

Fast Bluetooth OBD-II adapter (baudrate: 3Mbps).

Free firmware updates.

BatterySaver technology – low power mode.

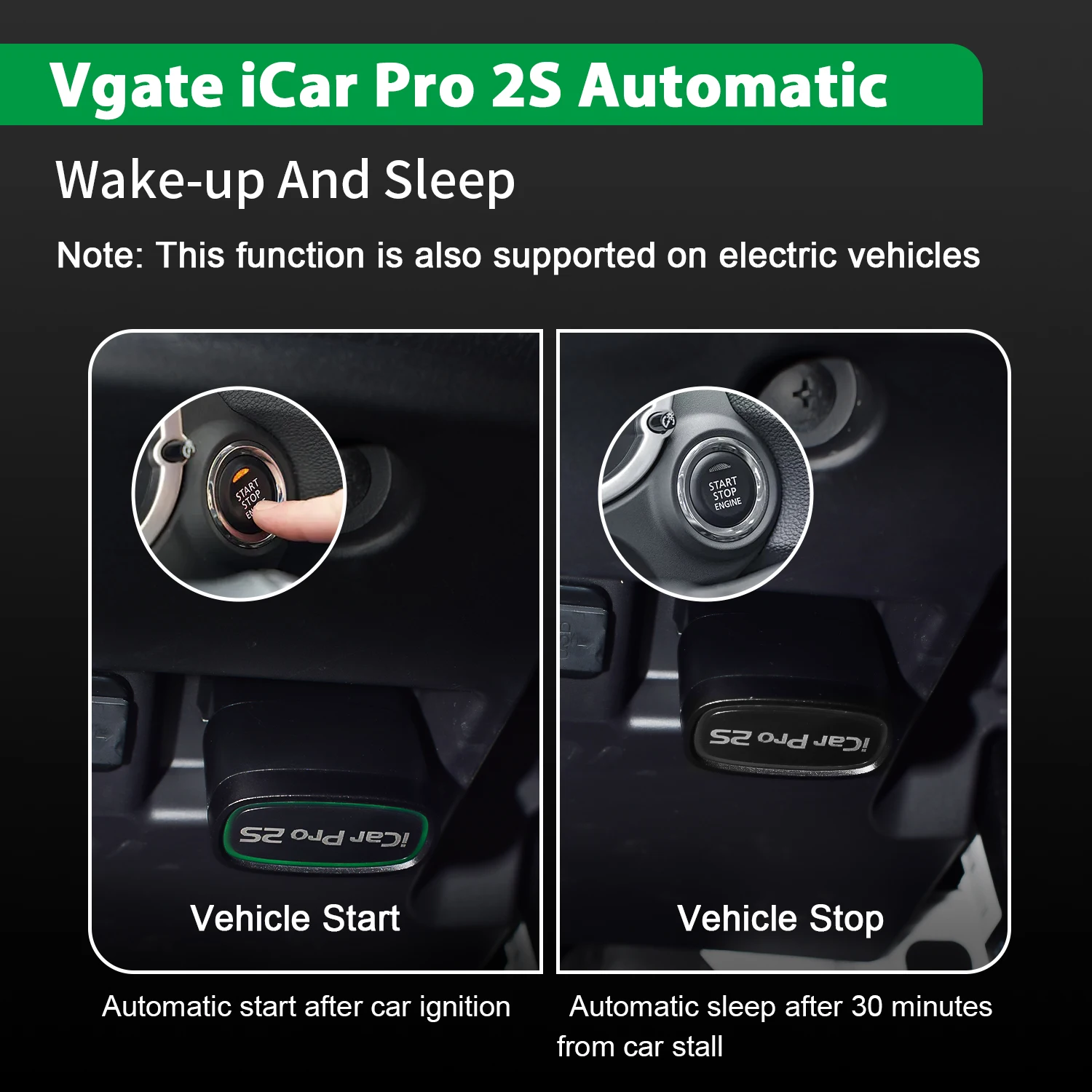

Automatic sleep & Wake up wirelessly.

Up To 208 groups pass, block, and flow control filters.

Superior compatibility – works with more 3rd party apps & software than any other adapter.

The iCar Pro 2S has added the automatic wake-up function of electric vehicles to the iCar Pro, providing customers with more choices!

Fully compatible with all OBD2 protocols and commands, with unique auto sleep/wake function. It operates at 34 mA and automatically sleeps in idle state at as low as 3 mA, protecting the life of the car's battery.

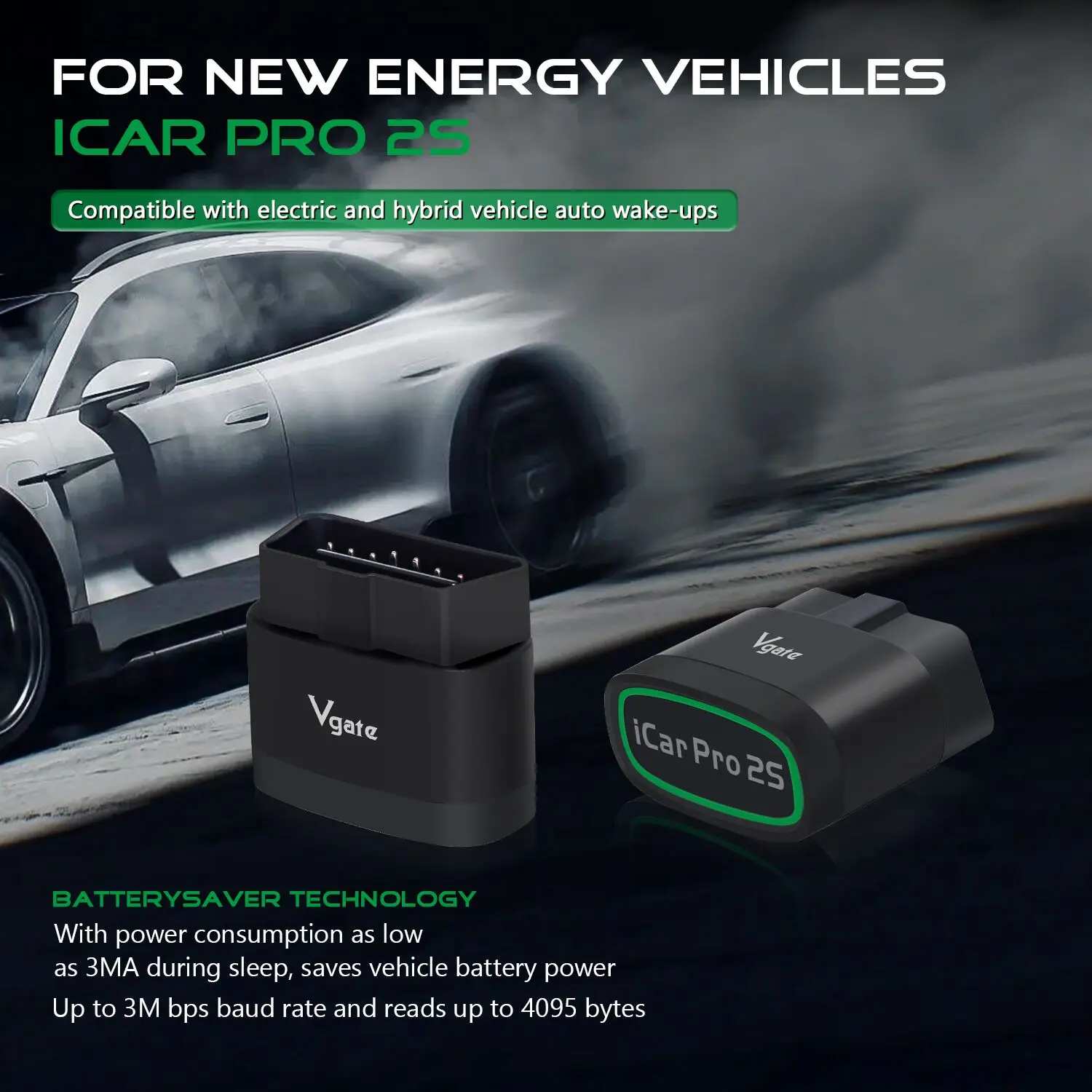

The ‘Auto Wake-Up Function’ can also support vehicle type: Hybrid / Pure Electric Vehicle.

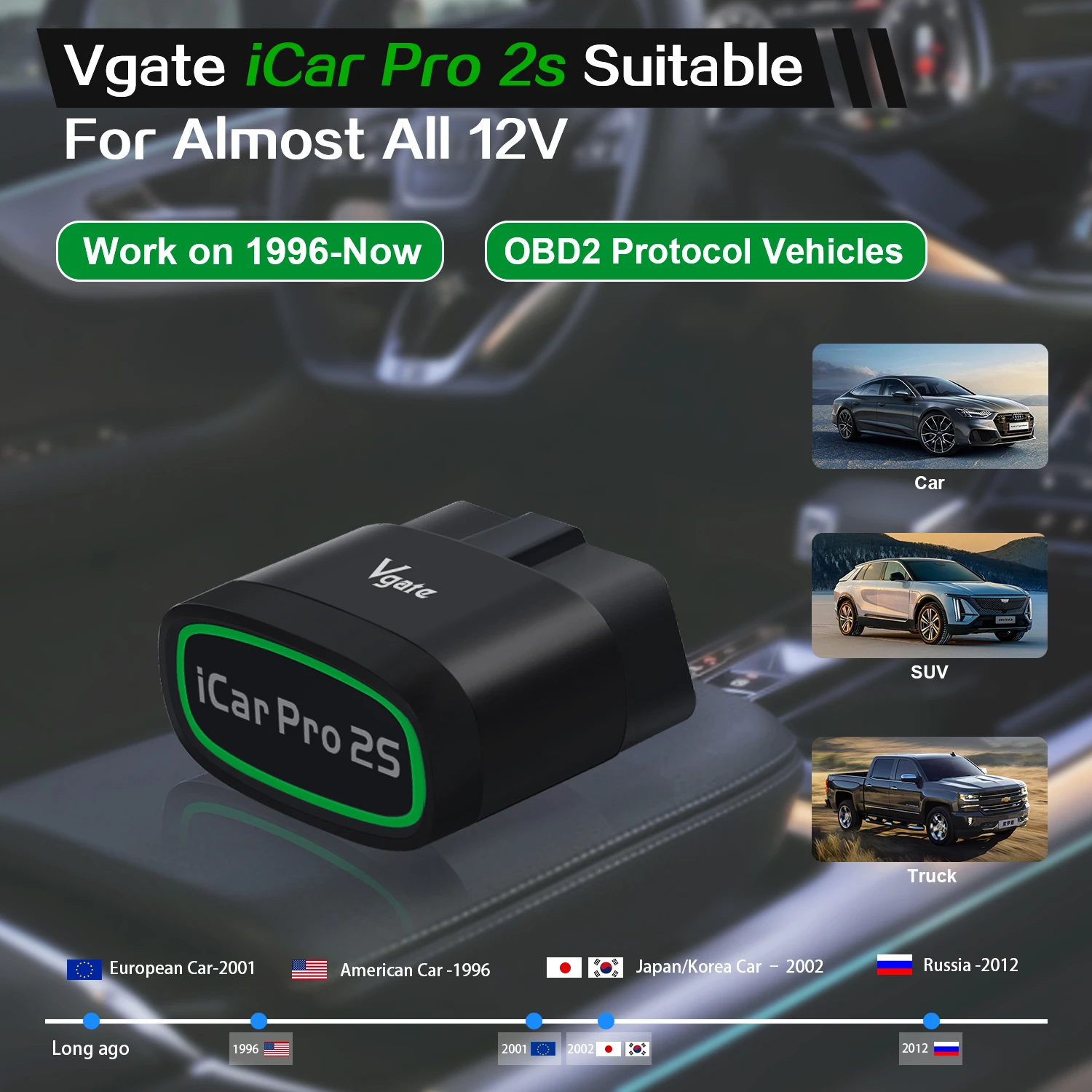

Vehicle Compatibility:

Works with all OBD2/EOBD compliant vehicles. Compatible with all OBD2 communication protocols.

EOBD vehicles (Petrol from 2001 and diesel from 2003/2004 in Europe) and OBD2 vehicles (1996 onwards in USA, 1998 in Canada)

Our products are applicable to 12V petrol vehicles compatible with standard OBD2 protocols, 12V small diesel vehicles with a load of 6.5T or less supporting the OBD2 protocols.

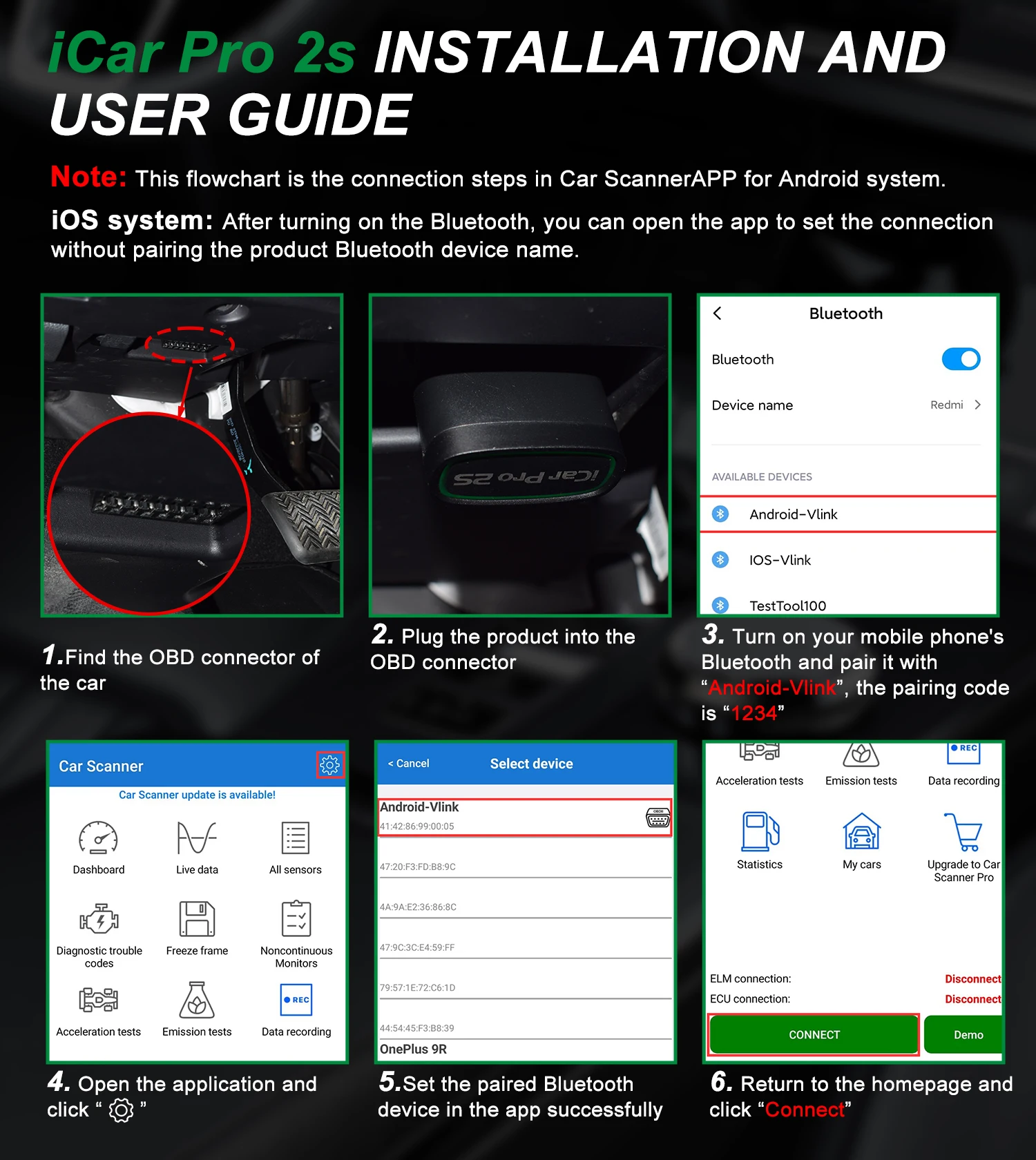

Vgate iCar Pro 2S connection steps (Taking Car Scanner APP as an example)

Android system:

After opening the Bluetooth, search the product Bluetooth device name ‘Android-Vlink’, enter the pairing code ‘1234’ to pair successfully, then you can enter the app to set up the connection.

iOS system:

After opening the Bluetooth, there is no need to pair the product Bluetooth device name, then you can open the app to set up the connection.

Windows system:(Note: the Bluetooth device name is the same as the device name shown in Android system)

After opening Bluetooth, search for the product Bluetooth device name ‘Android-Vlink’ in the Bluetooth settings, enter the pairing code ‘1234’ to pair successfully, and then enter the app settings to connect. It can be paired successfully, then enter the app settings to connect.
